REF: 312.CHWPRO15000

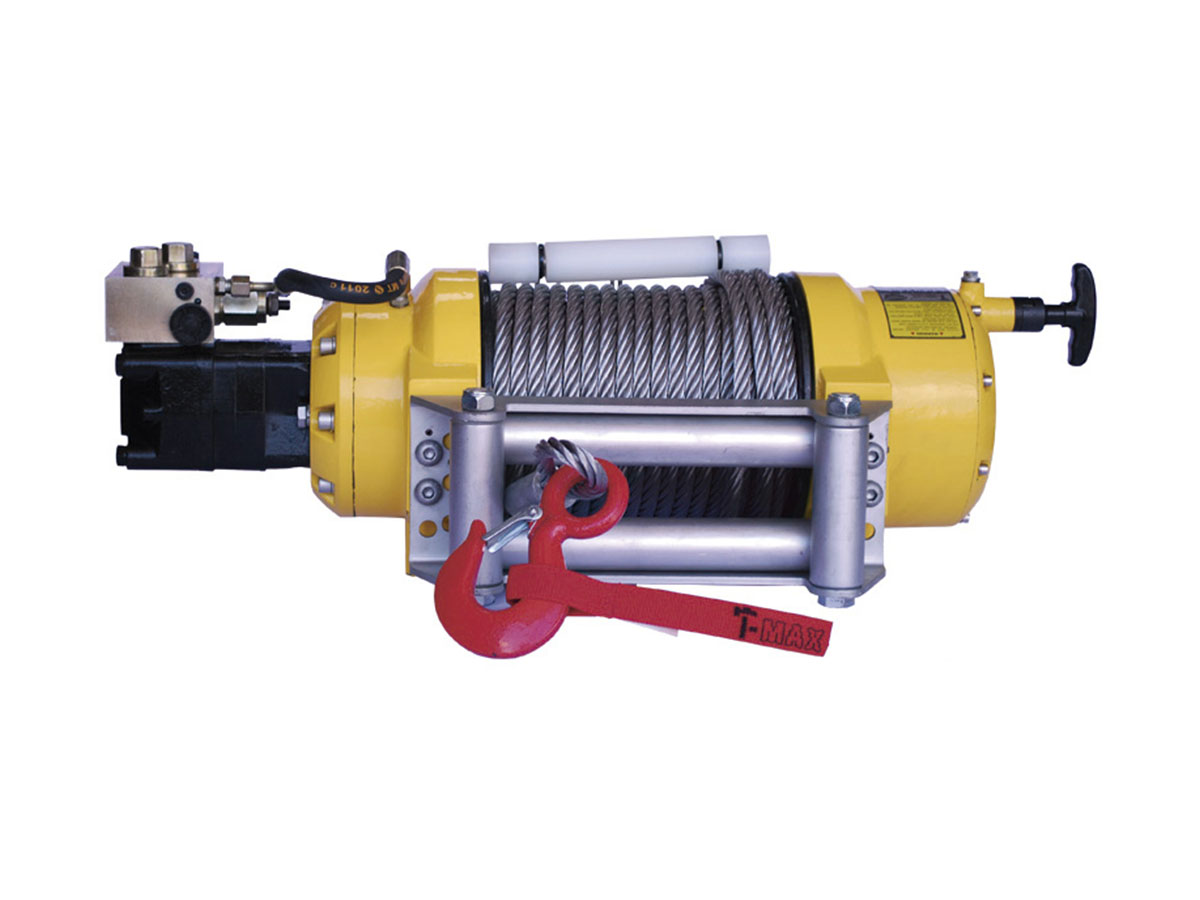

T-MAX winch Hydraulic Industrial CHW PRO12000 6800kg wire rope
1.766,00 € (VAT not included)While stocks last
Out of stock
Are you interested in this product?
Contact us through the following methods and we will be happy to resolve all your doubts and interests.
- Towing capacity: 6800kg (15,000lbs)

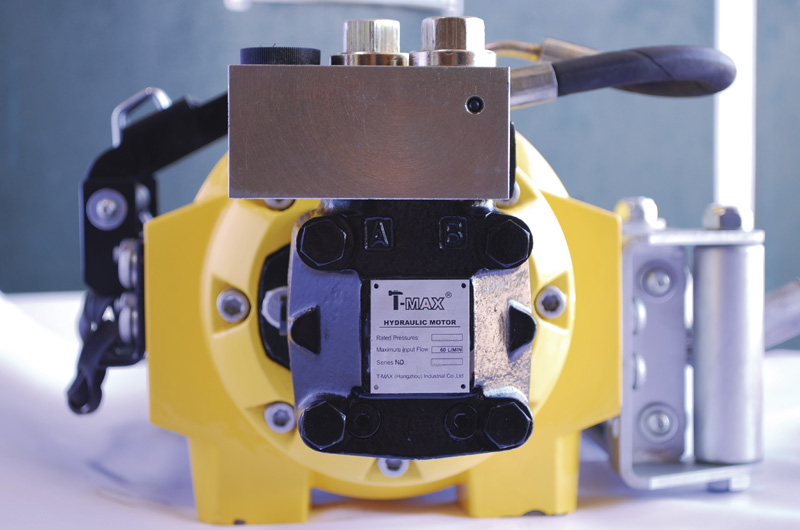

- Engine: 100CC/R
- Ratio: 23:1
- Clutch: Dual
- Brake: Dual brake
- Nominal pressure: 16 MPa.
- Maximum inlet flow: 60 L/min.

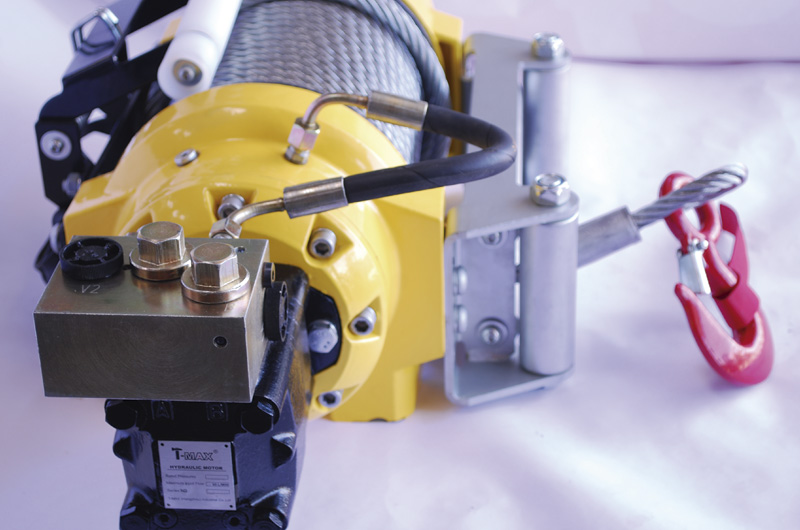

- Hydraulic fluid connection: 2×G1/2" (inlet); 1×G1/4" (outlet).
- Dimensions: 825 x 381 x 238mm
- Weight: 88kg
- Steel cable: ø13mm x 32m

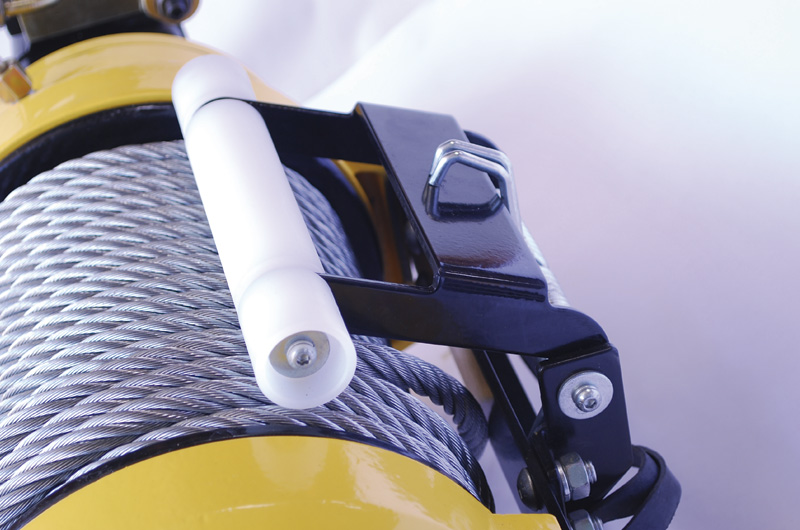

- Roller guide
- Cable control
Characteristics
- Towing capacity: 6800kg (15,000lbs)
- Engine: 100CC/R
- Ratio: 23:1
- Clutch: Dual
- Brake: Dual brake
- Nominal pressure: 16 MPa.
- Maximum inlet flow: 60 L/min.
- Hydraulic fluid connection: 2×G1/2" (inlet); 1×G1/4" (outlet).
- Dimensions: 825 x 381 x 238mm
- Weight: 88kg
- Steel cable: ø13mm x 32m
- Roller guide
- Cable control
